Control System Study Guide For Electrical Engineering Students

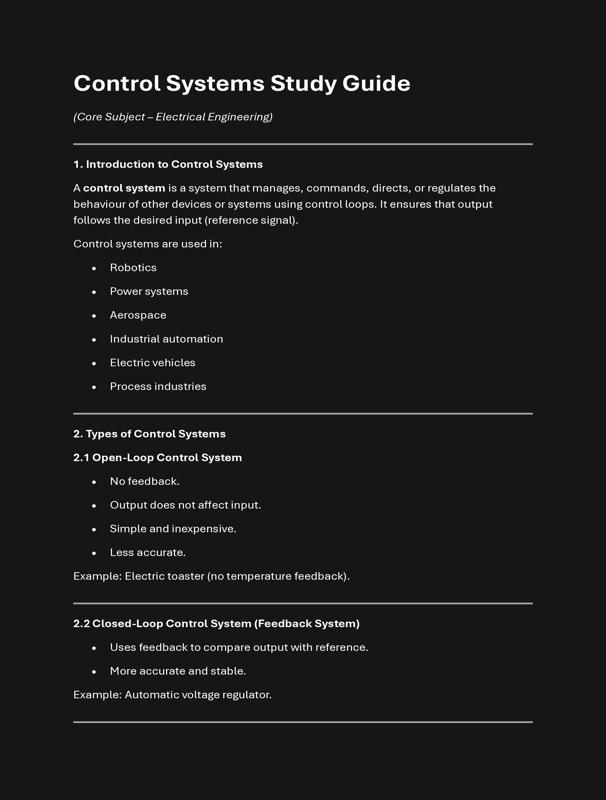

Control Systems Study Guide (Core Subject - Electrical Engineering) 1. Introduction to Control Systems A control system is a system that manages, commands, directs, or regulates the behaviour of other devices or systems using control loops. It ensures that output follows the desired input (reference signal). Control systems are used in: Robotics Power systems Aerospace Industrial automation Electric vehicles Process industries 2. Types of Control Systems 2.1 Open-Loop Control System No feedback. Output does not affect input. Simple and inexpensive. Less accurate. Example: Electric toaster (no temperature feedback). 2.2 Closed-Loop Control System (Feedback System) Uses feedback to compare output with reference. More accurate and stable. Example: Automatic voltage regulator.3. Basic Components of a Control System 1. Reference input 2. Comparator (error detector) 3. Controller 4. Actuator 5. Plant (system being controlled) 6. Sensor 7. Feedback path Error signal: [ e(t) = r(t) - y(t) ] Where: ( r(t) ) = reference input ( y(t) ) = output 4. Transfer Function The transfer function is the ratio of Laplace transform of output to input (with zero initial conditions). [ G(s) = \frac{Y(s)}{R(s)} ] Used to analyse linear time-invariant (LTI) systems. 5. Block Diagram Representation Block diagrams simplify system representation. Basic operations:
