Comparison Table Of Time Domain And Frequency Domain In Control System

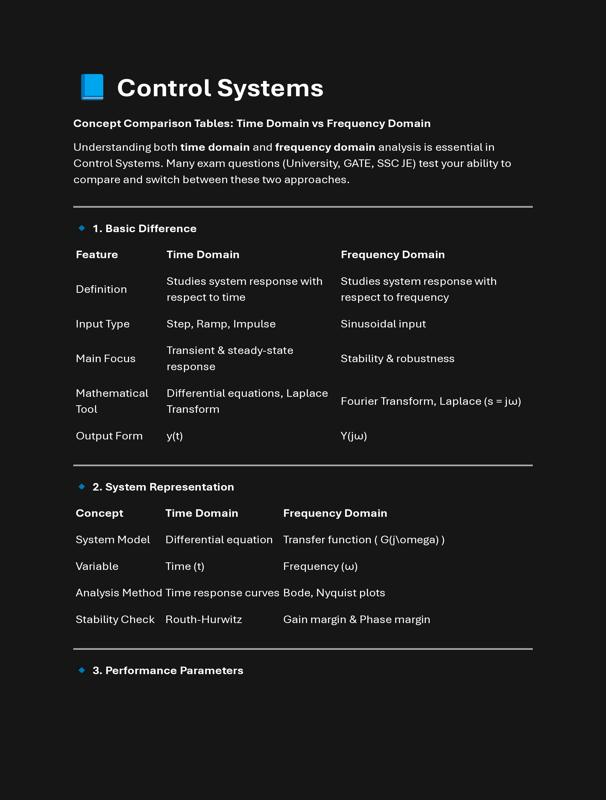

Control Systems Concept Comparison Tables: Time Domain vs Frequency Domain Understanding both time domain and frequency domain analysis is essential in Control Systems. Many exam questions (University, GATE, SSC JE) test your ability to compare and switch between these two approaches. 1. Basic Difference Feature Time Domain Frequency Domain Definition Studies system response with respect to time Studies system response with respect to frequency Input Type Step, Ramp, Impulse Sinusoidal input Main Focus Transient & steady-state response Stability & robustness Mathematical Tool Differential equations, Laplace Transform Fourier Transform, Laplace (s = j) Output Form y(t) Y(j) 2. System Representation Concept Time Domain Frequency Domain System Model Differential equation Transfer function ( G(j\omega) ) Variable Time (t) Frequency () Analysis Method Time response curves Bode, Nyquist plots Stability Check Routh-Hurwitz Gain margin & Phase margin 3. Performance ParametersParameter Time Domain Frequency Domain Rise Time Settling Time Peak Time Overshoot Bandwidth Gain Margin Phase Margin Resonant Peak 4. Stability Analysis Aspect Time Domain Frequency Domain Stability Test Routh-Hurwitz Nyquist Criterion Pole Location Left half plane Stable Encirclement of (-1,0) Root Locus Bode Plot 5. Design Perspective Design Goal Time Domain Frequency Domain Reduce Overshoot Increase damping ratio () Increase phase margin Improve
