Electrical Machines Study Guide For Electrical Engineering Students

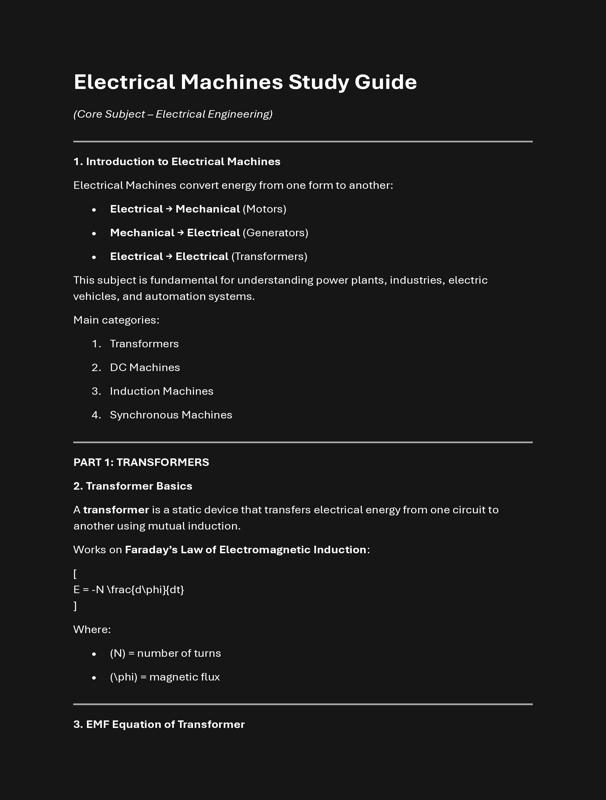

Electrical Machines Study Guide (Core Subject - Electrical Engineering) 1. Introduction to Electrical Machines Electrical Machines convert energy from one form to another: Electrical Mechanical (Motors) Mechanical Electrical (Generators) Electrical Electrical (Transformers) This subject is fundamental for understanding power plants, industries, electric vehicles, and automation systems. Main categories: 1. Transformers 2. DC Machines 3. Induction Machines 4. Synchronous Machines PART 1: TRANSFORMERS 2. Transformer Basics A transformer is a static device that transfers electrical energy from one circuit to another using mutual induction. Works on Faradays Law of Electromagnetic Induction: [ E = -N \frac{d\phi}{dt} ] Where: (N) = number of turns (\phi) = magnetic flux 3. EMF Equation of Transformer[ E = 4.44 f N \phi_m ] Where: (f) = frequency (N) = number of turns (\phi_m) = maximum flux 4. Turns Ratio [ \frac{V_1}{V_2} = \frac{N_1}{N_2} ] Step-up transformer (N_2 > N_1) Step-down transformer (N_2 < N_1) 5. Transformer Losses 1. Core losses o Hysteresis loss o Eddy current loss 2. Copper losses o (I^2R) losses Efficiency: [ \eta = \frac{Output}{Input} \times 100 ] 6. Transformer Tests Open Circuit Test Determines core loss. Short Circuit Test Determines copper loss. These tests help calculate efficiency and voltage regulation. PART
