Circuit Theory And Network Analysis Study Guide For Electrical Student

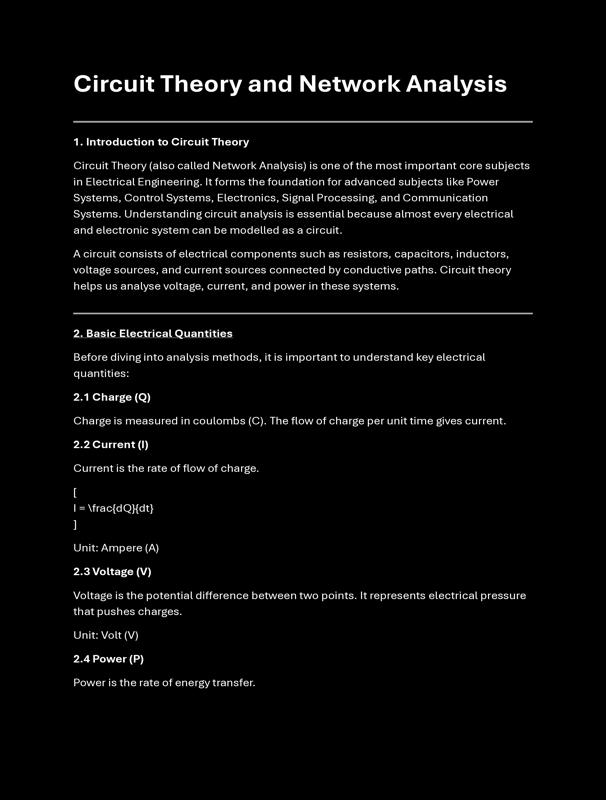

Circuit Theory and Network Analysis 1. Introduction to Circuit Theory Circuit Theory (also called Network Analysis) is one of the most important core subjects in Electrical Engineering. It forms the foundation for advanced subjects like Power Systems, Control Systems, Electronics, Signal Processing, and Communication Systems. Understanding circuit analysis is essential because almost every electrical and electronic system can be modelled as a circuit. A circuit consists of electrical components such as resistors, capacitors, inductors, voltage sources, and current sources connected by conductive paths. Circuit theory helps us analyse voltage, current, and power in these systems. 2. Basic Electrical Quantities Before diving into analysis methods, it is important to understand key electrical quantities: 2.1 Charge (Q) Charge is measured in coulombs (C). The flow of charge per unit time gives current. 2.2 Current (I) Current is the rate of flow of charge. [ I = \frac{dQ}{dt} ] Unit: Ampere (A) 2.3 Voltage (V) Voltage is the potential difference between two points. It represents electrical pressure that pushes charges. Unit: Volt (V) 2.4 Power (P) Power is the rate of energy transfer.[ P = VI ] Unit: Watt (W) If power is positive element absorbs power If power is negative element supplies
