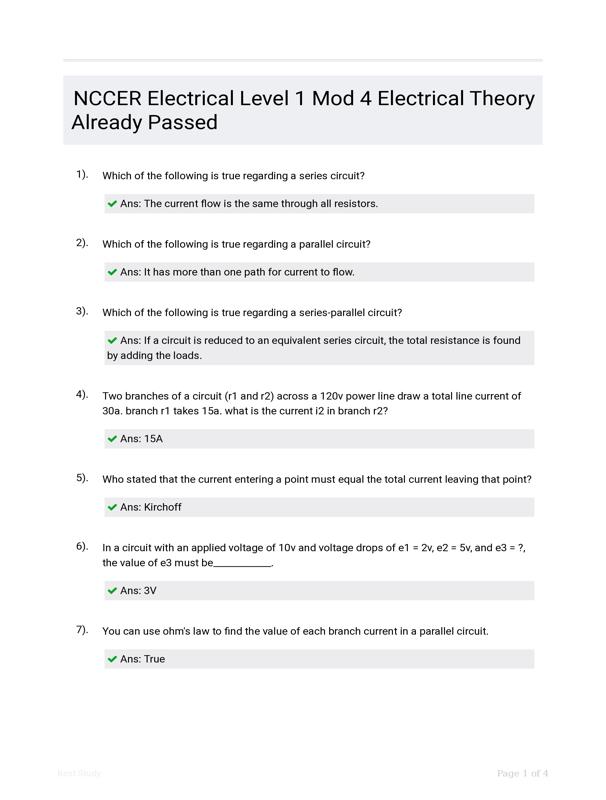

Nccer Electrical Level 1 Mod 4 Electrical Theory Already Passed

Kirchhoff's voltage law states that the algebraic sum of the voltages around any closed current path is ________. {Ans: zero}A ______________ contains only one path for current flow. {Ans: series circuit}Which of the following is true regarding a series-parallel circuit? {Ans: If a circuit is reduced to an equivalent series circuit, the total resistance is found by adding the loads.}A circuit diagram shows that the circuit divides into separate branches and there are also series loads. This is a(n) _____. {Ans: series-parallel circuit}You can use Ohm's law to find the value of each branch current in a parallel circuit. {Ans: True}A 242Ω resistor is in parallel with a 180Ω resistor, and a 420Ω resistor is in series with the combination in a 27V circuit. A current of 22mA flows through the 242Ω resistor. The current through the 180Ω resistor is _____________. {Ans: 29.6mA}
