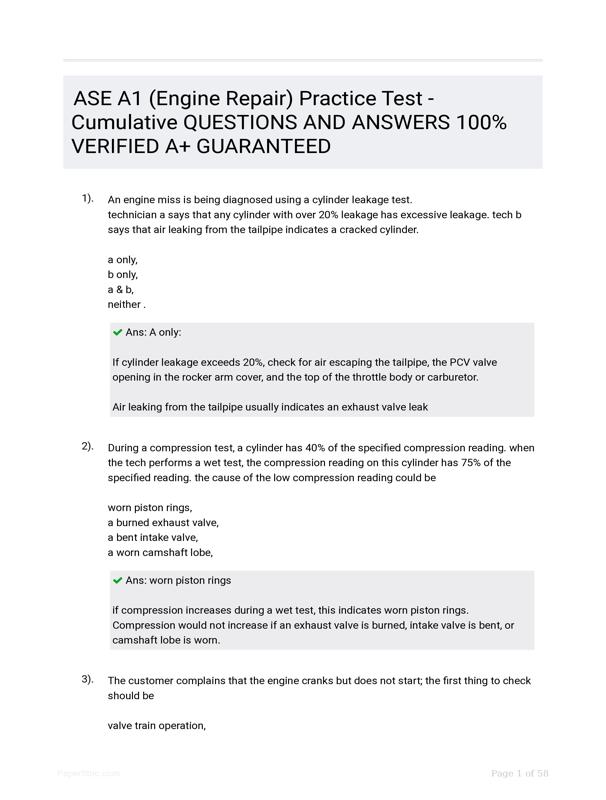

Ase A1 (Engine Repair) Practice Test - Cumulative Questions And Answers 100% Verified A+ Guaranteed

the figure shows the cylinder and ring ridge. if the amount of cylinder wear does not require cylinder reboring, A says the ring ridge at the top of each cylinder can be removed with 400g sand paper. B says the ring ridge at the top of each cylinder can be removed with a 200g bead hone A B Both Neither {Ans: Neither ~A ridge reamer should be used to remove the ridge}in the figure, a thermal cleaner is being used to prepare iron and steel components for inspection. the thermal cleaner heats the parts to: 200-300 degrees 550-700 degrees 700-900 degrees 650-800 degrees {Ans: 650-800 degrees ~this temp will cause the contaminants to oxidize. after the thermal cleaning process, the ash is removed by shot blasting or washing the parts.}in a figure, tech A says the tool is being used to check combustion chamber volume. tech B says the tool is being used to check valve stem installed height A B Both Neither {Ans: B the tool cannot check chamber volume}an engine miss is being diagnosed using a cylinder leakage test. Technician A says that any cylinder with over 20% leakage has excessive leakage. Tech B says
