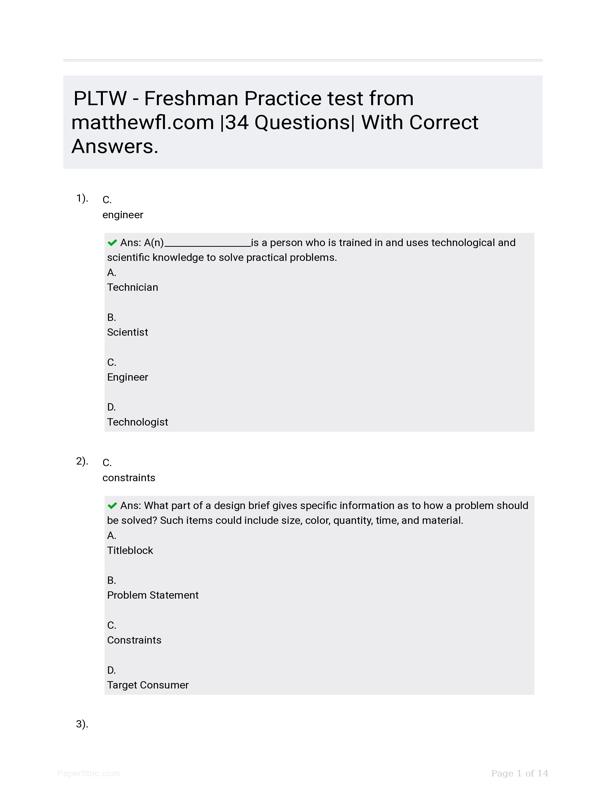

Pltw - Freshman Practice Test From Matthewfl.com |34 Questions| With Correct Answers.

B. Gantt Chart {Ans: The graphic below is a simplified __________________ which is used for planning, managing, and controlling major projects that have a distinct beginning and end. A. Flow Chart B. Gantt Chart C. Process Diagram D. Manufacturing Manual}D. Dimensions should not be duplicated {Ans: What general rule of dimensioning is being broken? Use the image below to answer the question. A. Dimensioning to hidden lines should be avoided B. Avoid placing dimensions inside the object C. Overall dimensions should be the furthest away from the object D. Dimensions should not be duplicated}D. Titleblock {Ans: Where would you find the number of times a working drawing has been revised? A. Front view B. Part list C. Balloon D. Titleblock}C. Technical Report {Ans: Engineers are often required to submit a document that is structured like the image below. This document is called a(n) _____________. A. Engineer's Notebook B. Specifications Packet C. Technical Report D. Decision Matrix}A. Perpendicular {Ans: What is one of the geometric constraints used to sketch the T-Block to the right? A. Perpendicular B. Tangent C. Concentric D. Relative}D. Two-point perspective {Ans: What type of three-dimensional sketch is drawn with vanishing points
