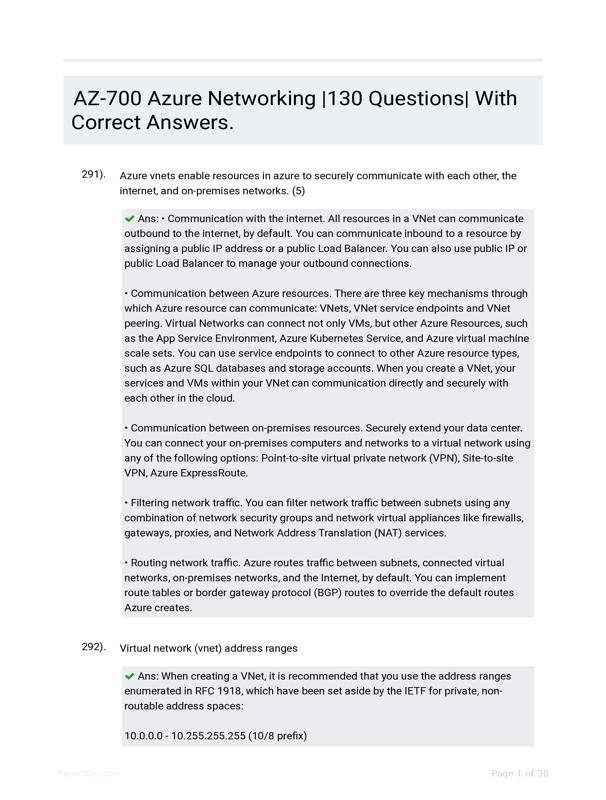

Az-700 Azure Networking |130 Questions| With Correct Answers.

When planning to implement subnets, you need to consider the following: (4) {Ans: • Each subnet must have a unique address range, specified in Classless Inter-Domain Routing (CIDR) format. • Certain Azure services require their own subnet. • Subnets can be used for traffic management. For example, you can create subnets to route traffic through a network virtual appliance. • You can limit access to Azure resources to specific subnets with a virtual network service endpoint. You can create multiple subnets, and enable a service endpoint for some subnets, but not others.}Add a LB Rule {Ans: Name: Enter a unique name for the load balancing rule IP Version: Select either IPv4 or IPv6 Frontend IP address: Select the existing public-facing IP address of the load balancer Protocol: Select either the TCP or UDP protocol Port: Specify the port number for the load balancing rule. The default is port 80 Backend port: You can choose to route traffic to the virtual machine in the backend pool using a different port than the one that clients use by default to communicate with the load balancer (port 80) Backend pool: Select an existing backend pool. The virtual machines in this backend
