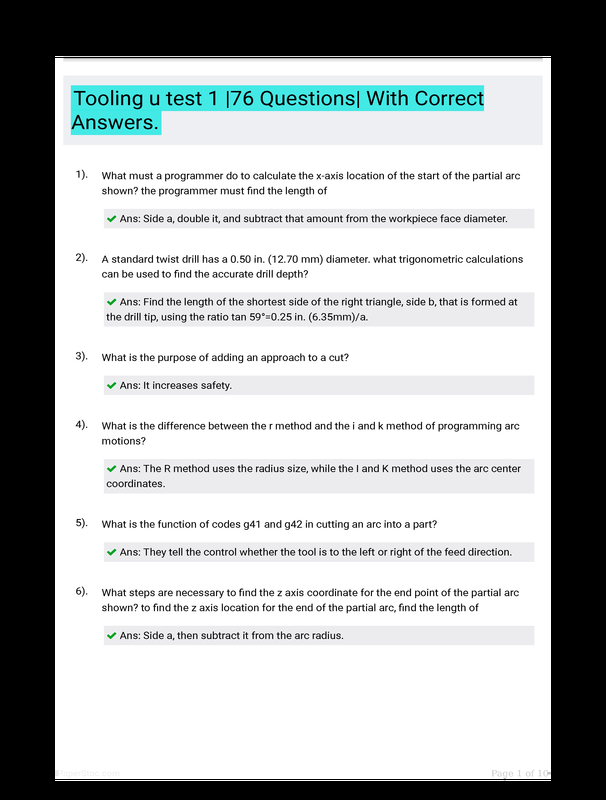

Tooling U Test 1 |76 Questions| With Correct Answers.

What is step-over? Step-over is: {Ans: The portion of the cutter that is engaged in the cut.}What CAD/CAM function creates route sheets, documents that guide and organize steps in manufacturing parts? {Ans: Process planning}A standard twist drill has a 0.50 in. (12.70 mm) diameter. What trigonometric calculations can be used to find the accurate drill depth? {Ans: Find the length of the shortest side of the right triangle, side b, that is formed at the drill tip, using the ratio tan 59°=0.25 in. (6.35mm)/a.}Which of the following is the series of movements made by a single cutting tool? {Ans: Toolpath}What is the purpose of a spot drill? A spot drill: {Ans: Starts and locates holes.}Which statement is true about CAD/CAM software? A part programmer uses CAD/CAM software to: {Ans: Create toolpaths for complex parts.}
