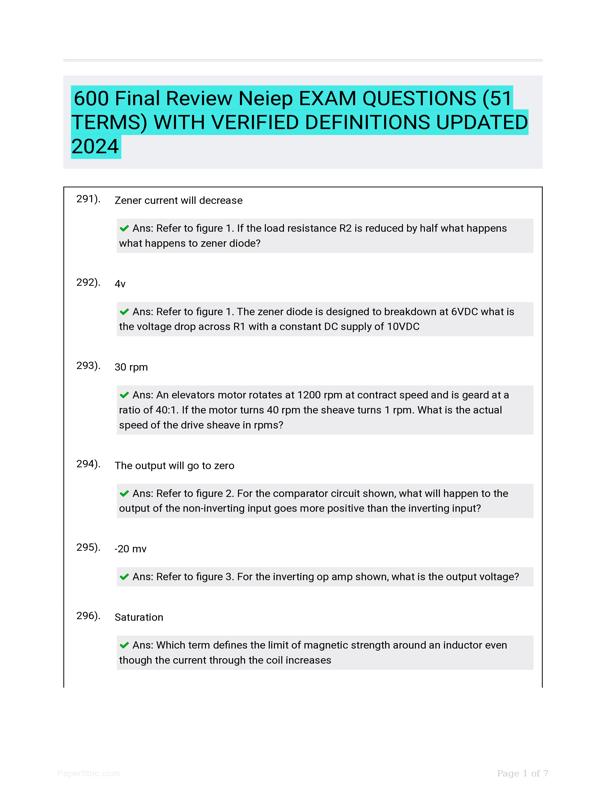

600 Final Review Neiep Exam Questions (51 Terms) With Verified Definitions Updated 2024

Saturation {Ans: Which term defines the limit of magnetic strength around an inductor even though the current through the coil increases}Top right {Ans: On the fourteen pin DIP IC shown in figure 4 what is the location of pin 14}-20 mv {Ans: Refer to figure 3. For the inverting op amp shown, what is the output voltage?}1000 0011 {Ans: What is the binary equivalent of 131 10?}1507 ohms {Ans: A brake coil has an inductance of 4 henries. If the coil was placed into a circuit with an operating frequency of 60hz the coil would have a resistance of:}A .7V drop from base-to-emitter is an indication of a good junction {Ans: Which of the following statements is correct when testing transistors?}2.4 A {Ans: The secondary load current of a 2300 to 120 volt transformer is 46 amperes. What is the current primary? (E = I x R)}LED {Ans: What does the symbol in figure 6 represent?}3k ohms {Ans: A 1.5 volt 8 milliamp light emitting diode needs to be operated from a 24VDC circuit. What series resistance is required?}Anode positive, cathode negative, gate pulse positive {Ans: Which of the following
