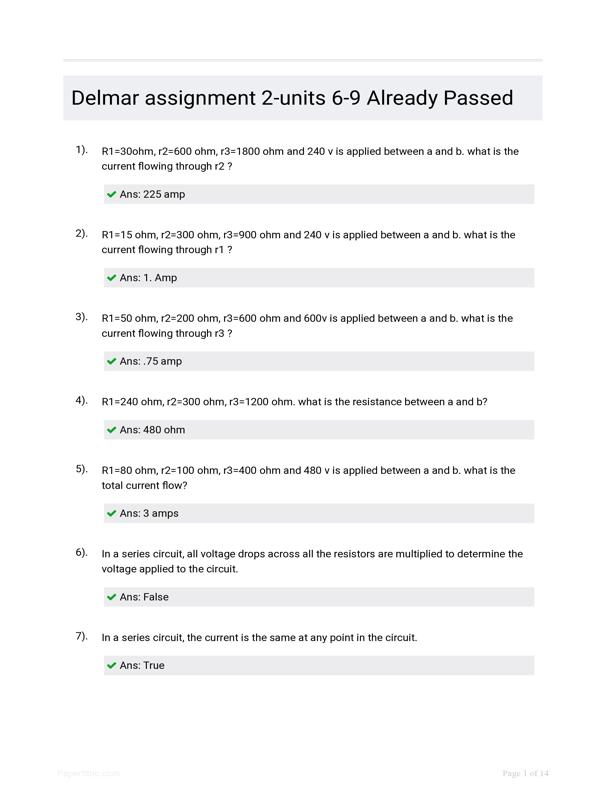

Delmar Assignment 2-Units 6-9 Already Passed

In a parallel circuit, the current through each branch is inversely proportional to the resistance of the branch. Because of this, parallel circuits are sometimes called? A. Voltage multipliers B. Current dividers C. Current multipliers D. Voltage divider's {Ans: Current dividers}Powered circuit networks can be simplified down to a equivalent SINGLE CURRENT source and a SINGLE resistor in PARALLEL with the source . This conversation is done in accordance with? A. Nortons theorem B. Thevenins theorem C. The superposition theorem D. Kirchhoff s law {Ans: Norton's theorem}A two-resistor series circuit has an applied voltage of 100 V. The voltage across one of the resistors is 40 V. The voltage across the other resistor is? A. 0.4 V B. 2.5 V C. 60V D. 140V {Ans: 60 V}The Algebraic SUM of the voltage sources and the voltage drops in a closed circuit must equal zero, is which law? A. thevenins voltage law B. kirchoffs voltage law C. Nortons current law D. Kirchoffs current law {Ans: Kirchoffs voltage law}R1=30ohm, R2=600 ohm, R3=1800 ohm And 240 V is applied between A and B. What is the current flowing through R2 ? {Ans: 225 amp}A two-branch parallel circuit has
