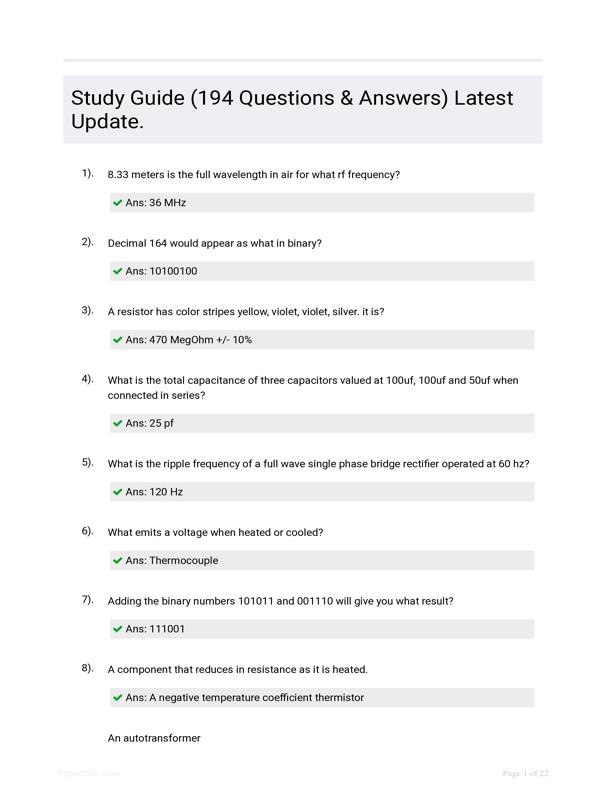

Study Guide Review With 194 Correctly Answered Questions Latest Update

An autotransformer {Ans: has a single winding}Adding armature windings in parallel to a generator's existing windings: {Ans: improves its voltage stability}You would want to use a dual trace oscilloscope to measure: {Ans: signal difference between two points}You would most likely prefer an analog VOM over a DMM for: {Ans: accuracy}Correctly connecting a properly rated zener diode across a power supply load will: {Ans: limit the output DC}Laminations used for the core of a transformer: {Ans: must be insulated from each other}A PC has conventional RAM and ROM memory area(in a PC it is 0 to 640 kilobytes); upper memory area(640 kilobytes to 1 meg) and extended memory area(above 1 meg). What other names for internal memory types do PCs have? {Ans: Tape Drive}You should expect the video amplifier in a radar or TV receiver to have a frequency response of: {Ans: 0-6 MHzd}A differential amplifier with two identical in-phase signals on the inputs will have an output of: {Ans: zero}The vertical axis of an oscilloscope display is also called the: {Ans: Y axis}A small power drill or electric mixer would probably be powered by a {Ans: Series Motor}The normal
